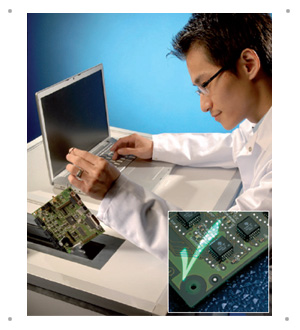

Gen3 System CM60
|
 |
|
|
| ¡· |
Maximum PCB Size : 500mm X 350mm X 60mm.
|
| ¡· |
Measurement Range: 0.01 ¡V 30µg/cm⒉ NACI equivalence.
|
| ¡· |
Sensitivity: <0.25% of measurement range
|
| ¡· |
Precision and Repeatability: Better than ¡Ó 2% of range for maximum PCB surface area
|
| ¡· |
CM60 utilises a unique Volumetic Measurement Cell (VMC) to automatically and precisely calculates the displaced test solution that determines the surface area to be tested.
|
|
|
|
|
|
|
